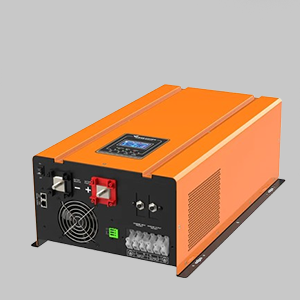

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Pure sine wave inverter
Output power factor 1
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Configurable ac/battery input priority via LCD setting
Compatible with generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Color LCD display
Supports the use lithium batteries
Wave by wave phase detection, more stable and reliable
|
Model
|
RP 1K
|
RP 2K
|
RP 3K
|
RP 4K
|
RP 5K
|
RP 6K
|
RP 8K
|
RP 10K
|
RP 12K
|
|
Rated Power
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
8000W
|
10000W
|
12000W
|
|
INPUT
|
|||||||||
|
Voltage
|
100/110/120Vac;220/230/240Vac
|
220/230/240Vac
|
|||||||
|
Selectable Voltage Range
|
Wide Range : 75vac~138Vac; 155Vac~275Vac(for home appliances)
Narrow Range: 82Vac~138Vac; 165Vac~275Vac(for personal computer)
|
||||||||
|
Frequency Range
|
40~70Hz (50Hz/60Hz)
|
||||||||
|
OUTPUT
|
|||||||||
|
AC Voltage Regulation(Battery. Mode)
|
100/110/120Vac; 220/230/240Vac
|
220/230/240Vac
|
|||||||
|
Surge Power
|
2000VA
|
4000VA
|
9000VA
|
12000VA
|
15000VA
|
18000VA
|
24KVA
|
30KVA
|
36VA
|
|
Efficiency (Peak)
|
88%
|
91%
|
90%
|
||||||
|
Transfer time
|
<20ms
|
<10ms
|
<20ms
|
||||||
|
Waveform
|
Pure sine wave
|
||||||||
|
Protection
|
Over charging, over temp, over battery voltage, over load, short circuit
|
||||||||
|
Operating environment Temp
|
55°C
|
||||||||
|
Cooling
|
Intelligent Fan
|
||||||||
|
Display
|
Color LCD
|
||||||||
|
Parameter setting
|
By LCD or Position Machine:Charging current , battery type , input voltage , output frequency, Wide and Narrow range of ac input
voltage , Power saver mode, ac/battery priority
|
||||||||
|
PHYSICAL
|
|||||||||
|
Dimension D*W*H(mm)
|
390*222*178
|
500*258*190
|
574*345*197
|
584*425*180
|
|||||
|
Net Weight(kg)
|
12.4/11.4
|
16/15
|
25.2/24.6
|
34.4/33.8
|
37.9/38.2
|
41.6/40.5
|
58.7/59
|
67/66.5
|
71.8/72
|
|
ENVIRONMENT
|
|||||||||
|
Humidity
|
5-95% Relative Humidity (Non-condensing)
|
||||||||
|
Operating Temp
|
-10°C to 50°C
|
||||||||
|
Storage Tem.
|
-15°C to 60°C
|
||||||||
